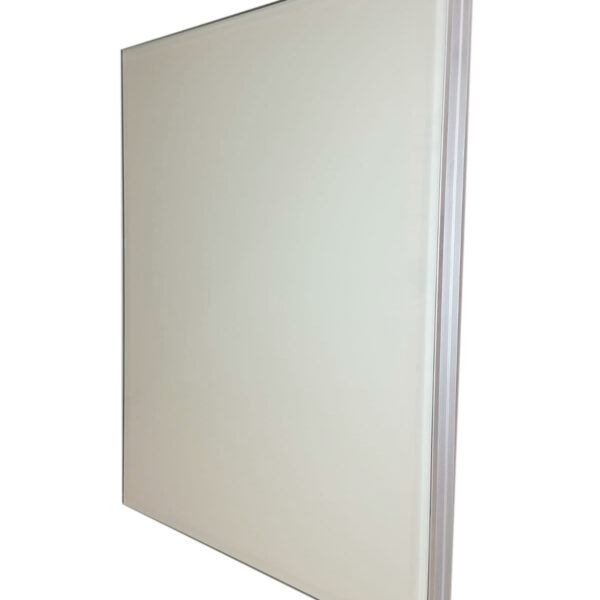

SL1

  • 40 mm thickness
  • Dimensions; width 200-1000 mm, height 200-3000 mm
  • CE mark
  • 100 Pa tested
  • Manufactured according to GMP
420,001.050,00
Price without VAT

Description

  • 40 mm thickness
  • Dimensions; width 200-1000 mm, height 200-3000 mm
  • CE mark
  • 100 Pa tested
  • Manufactured according to GMP
  • Reaction to fire A2-s1-d0, HRN EN 13501-1:2019
  • Sound insulation Rw=31 Db, HRN EN ISO 717-1:1998
  • 6 mm tempered glass SIST EN 12150-2, SIST EN 14179-2
  • Glass painted with enamel paint according to RAL chart
  • Digital ceramic ink print for motives and high resolution pictures
  • Rock wool 33 mm thick insulation, reaction to fire Euroclass A1, EN 13501-1, high density 100kg/m3
  • Frame made out of extruded aluminium AW6061 T6 of high strength
  • 0,8 mm galvanized steel back plate painted according to RAL chart
  • Cladding solution without backplate for reducing cost
  • Vertical reinforcement inside glass panel for width above 600 mm
  • Galvanized steel reinforcements inside glass wall for integrated equipment
  • Pre-fabricated openings for the equipment





Technical Details

400 X 3000 420€
500 X 3000 525€
600 X 3000 630€
800 X 3000 840€
1000 X 3000 1050€
